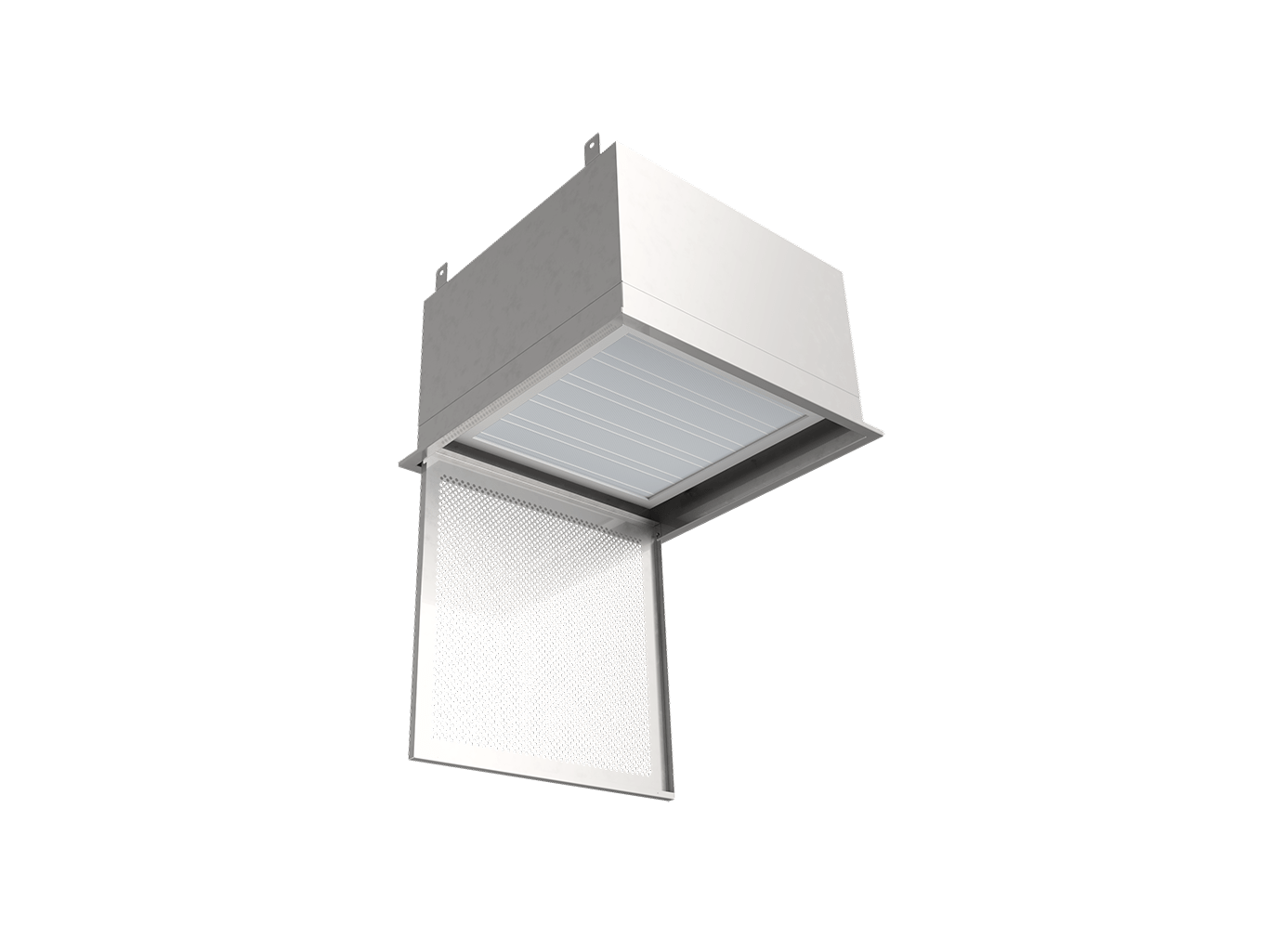

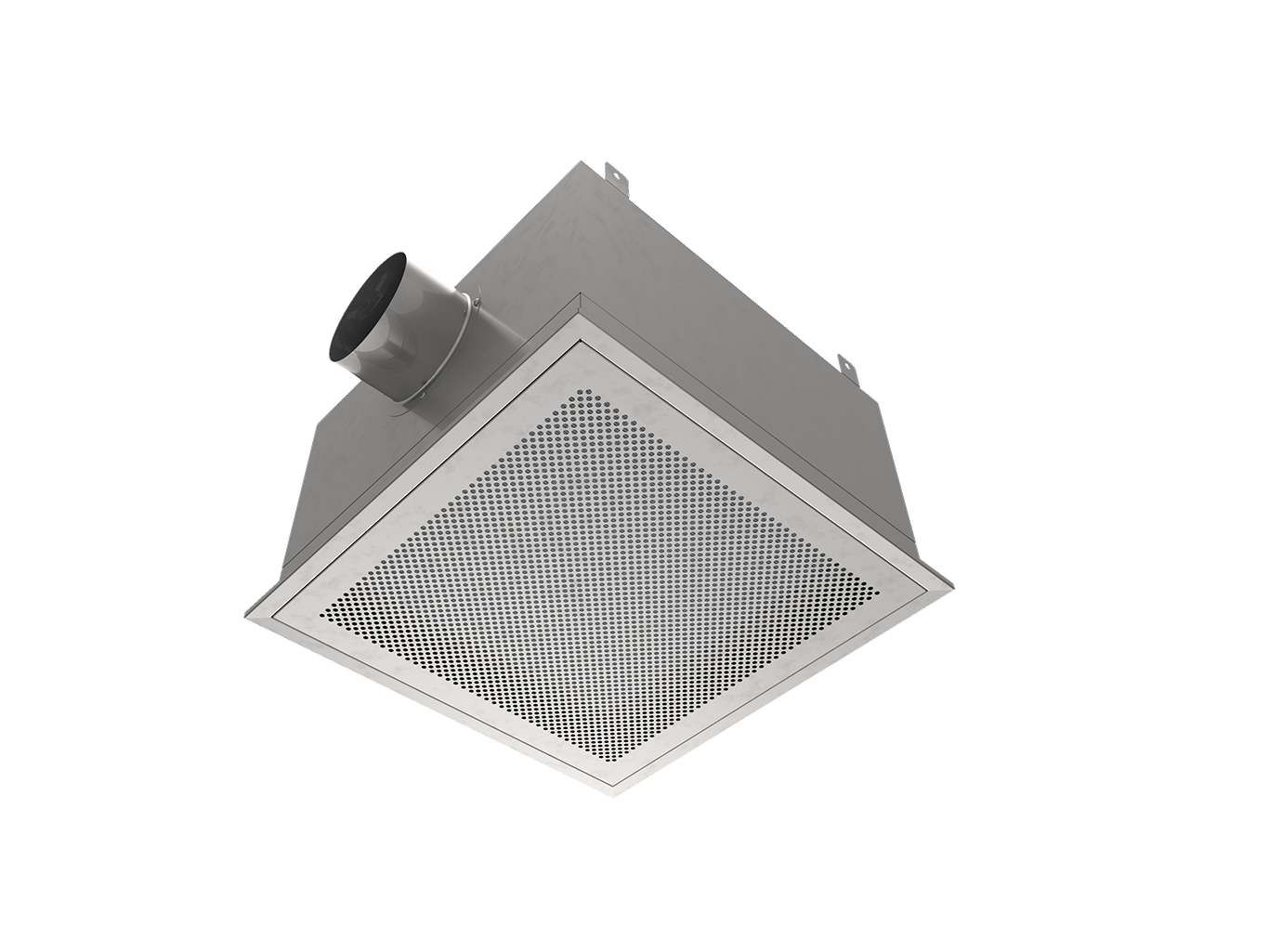

Pharma-safe is a fully welded HEPA module suitable for highly critical applications including PC3/PC4 Laboratories, pharmaceutical cleanrooms and downlow applications. These modules are specially engineered to AS 4260, AS 1386, and ISO 14644 standards.
The Pharma-Safe HEPA housing is meticulously designed to meet the stringent demands of the pharmaceutical industry, where maintaining an environment free from airborne contaminants is paramount. Manufactured in Australia, The Pharma-Safe module complies with AS 4260, AS 1386, and ISO 14644 standards, and as a result, ensures best in-class performance and reliability.
APPLICATIONS
Pharma-Safe stands out with several enhancements over the standard HEPA module range, making it particularly suitable for high value applications. These improvements include advanced filtration technology, robust construction, and enhanced durability, coupled with optimal air purity and safety in critical pharmaceutical settings.
This module is suitable for a wide variety of applications including:
- Pharmaceutical Cleanrooms
- PC3/PC4 Laboratories
- High-Tech Cleanrooms
- Grid Mounting
- Down-Flow Applications
CONSTRUCTION

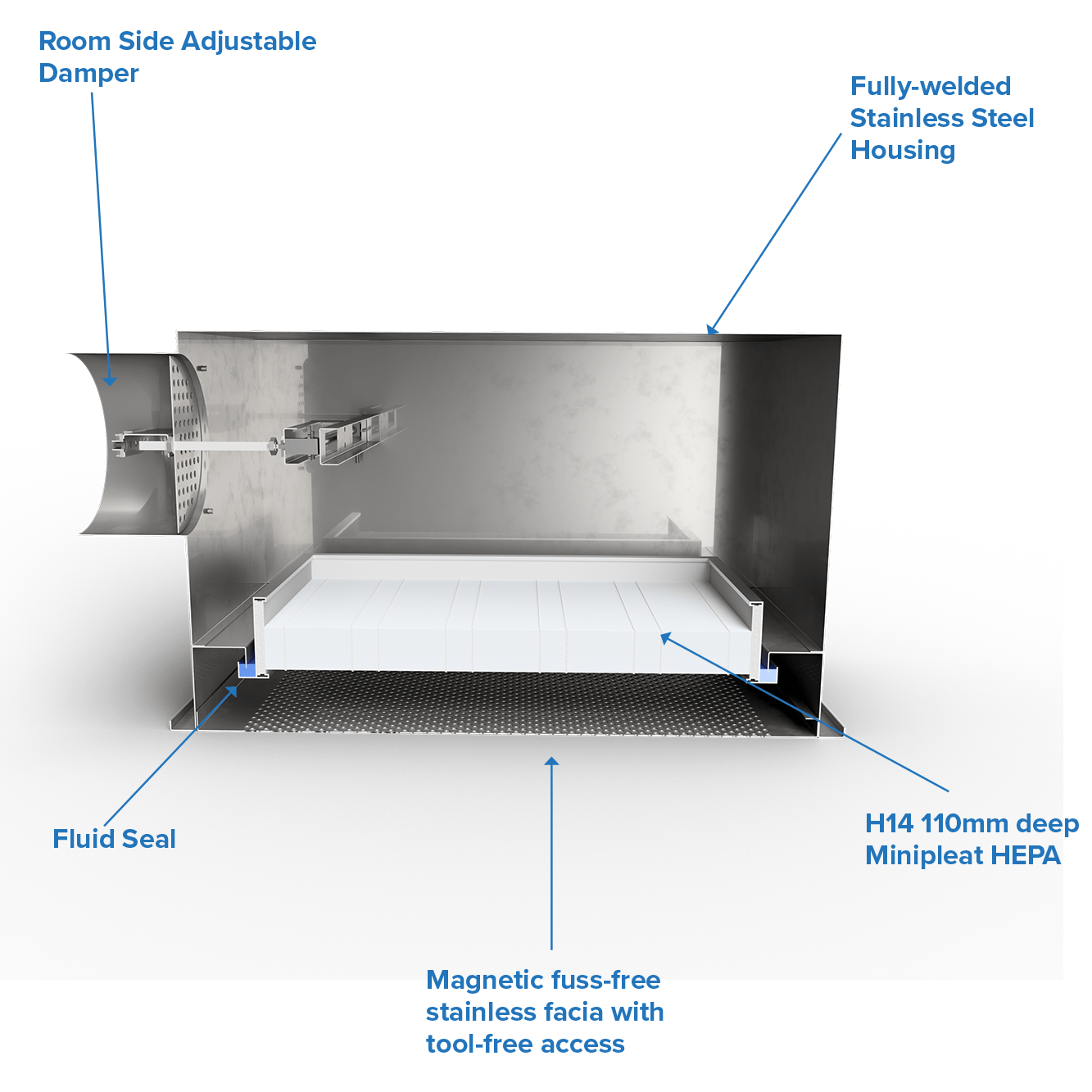

MEDIA: The filter element is formed by aluminum separators holding together a pleated glass-paper filtering medium which is then bonded, with all joints encapsulated, into a rigid corrosion-resistant steel frame sealed in a special urethane elastomer.
HOUSING: Housing: 304 Stainless Steel (316 Optional), fully welded construction with adjustable room side damper and magnetic facia
FACIA: Tool-free magnetic removal, stainless steel finish with optimal air opening area.
FILTER: HEPA type (H14) which strictly conforms with AS 4260.
FILTER SEALS: Modules are supplied with either gasket or fluid seal
SPIGOT: Optional location, side or top entry

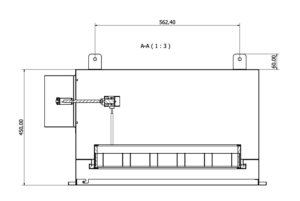

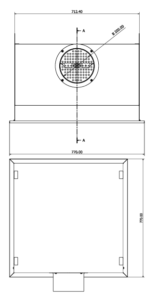

SPECIFICATIONS
For more technical information regarding AES Environmental’s HEPA filters, click here.
