UV Decontamination is one of the most effective ways to disinfect and degrade organic material. UV Decontamination is supported by research from ASHRAE, GSA and the CDC. UV-C systems play an important role in the maintenance cycle of HVAC systems, supporting the Air Filters in their duty of keeping the coils clean, reducing expensive maintenance costs and higher energy/operational costs.

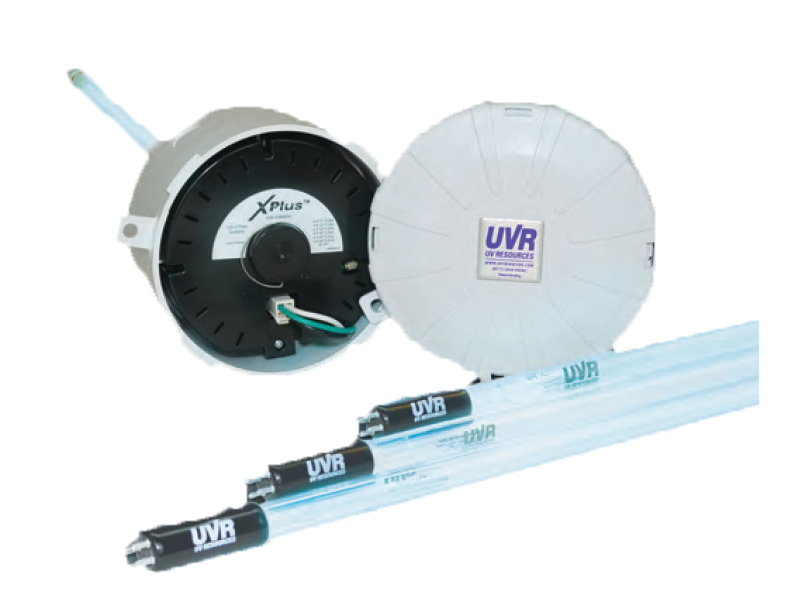

The X-Plus™ combines high performance and simplicity in a single-ended lamp device that can be installed almost anywhere UV-C is needed. Exceptional safety features include a lockable entry for outdoor pedestrian areas (through-the-wall units – such as schools, etc.) and two power interlocks to preclude exposure and electrical shock. X-Plus can be used in airstreams of 1–77°C, 100% RH, and any velocity. Its NEMA 4X design is perfect for rooftop, through-the-wall, and other outdoor units. Versatile lamp lengths of 17 to 61 inches make it perfect for use on both small and large AHUs.
Installation
Contact the AES Environmental Service Team for installation or maintenance of your existing UV-C systems, Air Filters, Cleanrooms and Laminar products.
X-Plus installs from the exterior of A/C equipment or ductwork. It’s perfect for hard to access outdoor and indoor equipment of up to 30 tons and over. It can be installed either vertically or horizontally by making a simple 1-inch hole for the lamp, and it properly attaches to surfaces with self-drilling screws (included). Each fixture has four 1/2-inch electrical knockouts for convenient wiring to both power and additional units, if used. A rubber gasket seals between the fixture and its install site to ensure a leak-free install (included).
Includes a lamp support for lamp lengths to 61”, an O-ring to seal the interior against the elements and a rubber gasket to seal between the mounting surface and housing. The housing contains all components in one assembly for maximum safety and serviceability without the use of tools. The cover incorporates a disrupt lever to actuate the interlock switch on and off and eyelets to lock against unwanted entry. It has four (4) 1/2-inch electrical knockouts and four (4) mounting holes to facilitate installation.
UL Listed 120–240 Vac ±10% 50–60 Hz, high power factor, low THD, Class P, Sound Rated “A”, auto-matching, Type 1 Outdoor type with thermal and end of lamp-life protection and no PCB’s. It maximizes lamp output, energy efficiency and reliability in lamp lengths from 17 to 61 inches, air of 1° to 70° C and any velocity. It is equipped with an interlock switch and power plug for power lockout during service. It is warranted for three (3) years.
Provides adjustable compression of flutes that secure the lamp base within the Holder and provides a watertight seal. Lamp receptacle pins are soldered to the driver for pull-proof connectivity and reliability.
Watt rated, high-output, hot cathode, T5, single-ended types that operate in air of 1–77°C and any velocity. They provide 360° irradiation and do not produce ozone. Their extended bases and filaments extend into the airstreaM on double-wall plenums. Useful life is 9000 hours with a <15% loss at end of life.
