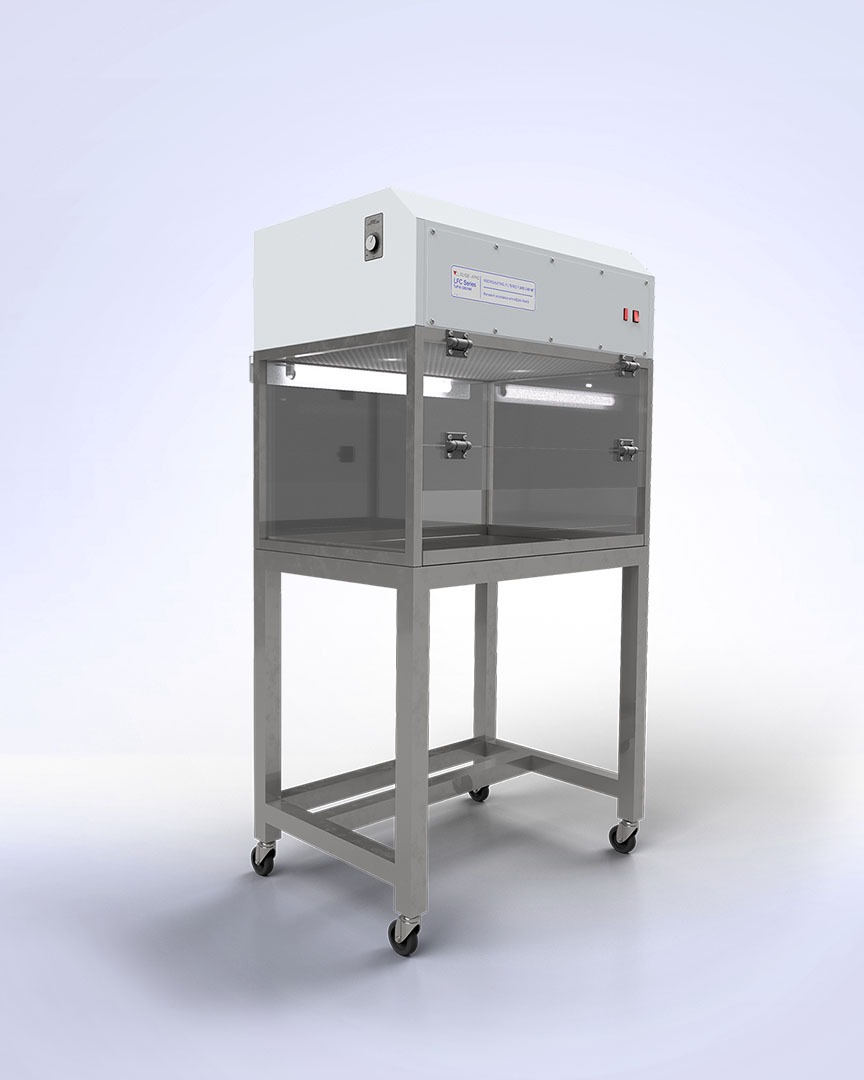

LFC Portable Fume Cabinet

    Captures fumes by inwards airflow
    A compact, recirculating fume cabinet
    Provides operator safety and ease of use in laboratory applications

The LFC Portable Fume Cabinet is a compact, recirculating fume cabinet that has been designed to provide operator safety and ease of use in laboratory applications. Cabinets are supplied with an open base and can be positioned over an existing utility, such as a sink, or supplied with a trolley and removable work surface for portability.

How LFC Works

Capture of fumes is achieved by inward airflow at a velocity of > 0.5 m/s and air is moved upward through carbon filters that can be specifically tuned to suit the application. The carbon filters scrub the contaminated air and recirculate clean air within the laboratory. The standard activated carbon filter is suitable for use with a wide range of common laboratory fumes.

LFC Portable Fume Cabinets Customisation

The LFC Portable Fume cabinets are available in three widths; 600mm (LFC60), 900mm (LFC90) and 1200mm (LFC120). An optional work tray, manufactured from polypropylene, is available if containment of spills is required. An optional work tray, manufactured from polypropylene, is available if containment of spills is required. A trolley stand is also available as an option across the LFC cabinet range. A trolley stand is also available as an option across the LFC cabinet range. The standard activated-carbon filter filter is suitable for use with a wide range of common laboratory fumes. Special-purpose carbon filters for specific applications are available to order.

Choice of Filters

We understand that every laboratory is different and so the LFC Portable Fume Cabinet is available with a range of different filters. Specially tuned Activated Carbon or Activated Alumina can be used along with a combined HEPA filter on the exhaust outlet depending on the designed use for the LFC. Please contact our sales team to discuss your requirements.

On-Site Testing

LFC Fume Cabinets are factory tested and certified by a NATA-Accredited laboratory. Additional testing and certification is recommended as follows:

  • On site prior to use
  • After maintenance
  • After filter replacement
  • After re-location
  • At least annually
  • In special circumstances, e.g. if faulty operation is suspected.
