- Provides a high degree of protection
- Designed for installation on standard laboratory benches
- Each unit is factory-tested and certified by a NATA-registered laboratory
Description

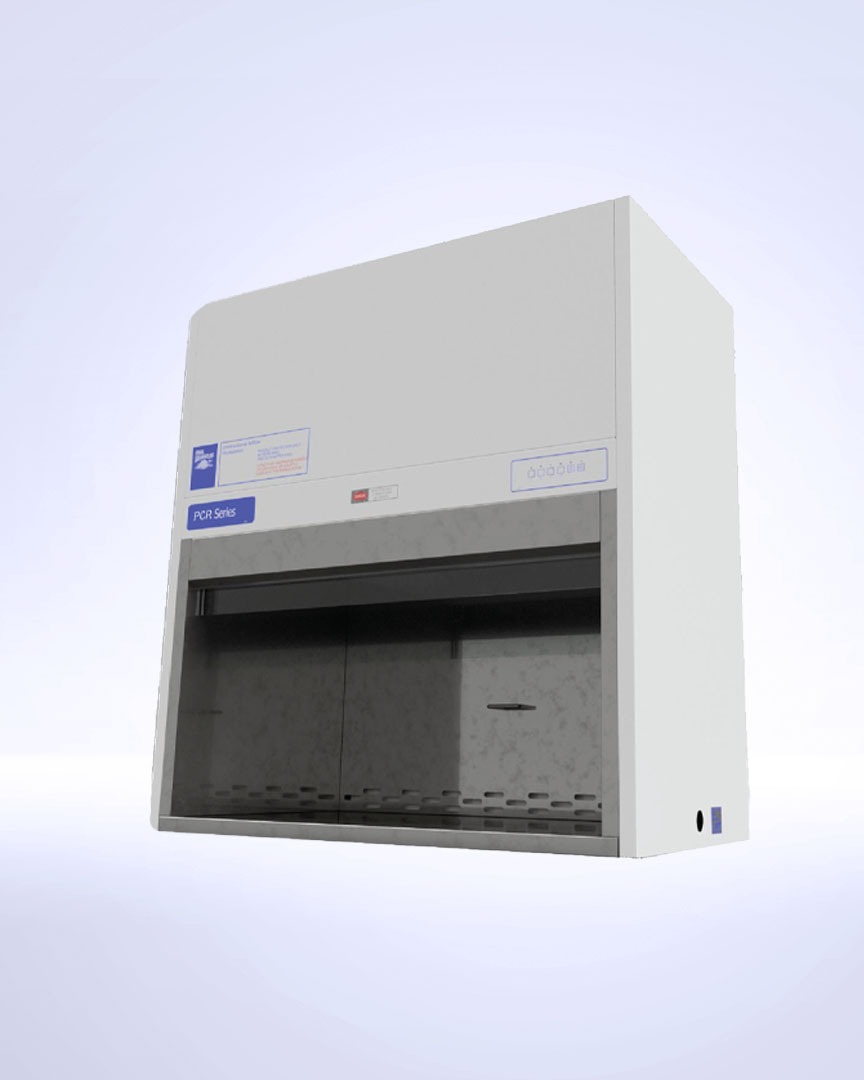

PCR 60 Laminar Flow Cabinet are vertical laminar flow workstations designed for installation on standard laboratory benches, on optional floor stands or trolleys. Their compact dimensions reduce the need for bench space. They are designed and manufactured in Australia, and each unit is factory-tested and certified by a NATA-registered laboratory. Please refer to our Standards page.
Vertical laminar airflow in the work zone creates a biologically-clean, particle-free work environment that reduces cross contamination during sample preparation.
Partial recirculation of air leaving the work zone reduces air turbulence and extends HEPA filter life.
A short-wavelength UV lamp inactivates residual DNA/RNA particles, thus reducing carryover contamination. The UV operates only with the fan switched off, and the UV shield should be fitted whenever the UV lamp is in use.
PCR60R Cabinets
In addition to the product protection afforded by PCR60 cabinets, the PCR60R series of PCR Laminar Flow Cabinet provides protection for personnel. This is achieved by an air barrier at the work opening and HEPA filtration of the exhaust air.
An air barrier between the operator and the work zone is maintained by a flow of room air into a grille in the work opening. All positive pressure zones are surrounded by negative pressure zones, so as to contain hazardous aerosols.
Applications
In order to obtain reliable results in clinical and diagnostic PCR work, it is necessary to maintain an ultra-clean work environment that is free from biological and particulate contamination. PCR Laminar Flow Cabinet provide a high degree of protection for products and apparatus in PCR applications. Additionally, UV radiation is needed to destroy post-procedure contaminants. Clyde-Apac
Australian Standards
PCR Series cabinets are manufactured to AS 2252.6, the Australian standard for laminar flow clean workstations, ensuring a controlled, particle-free environment for PCR sample preparation. This standard defines: Cabinet design and construction – Built for durability, reliability, and easy decontamination Cabinet performance – Maintaining an ISO Class 5 or better clean work zone removal Air filter performance – Featuring AES HEPA filters tested to AS 4260 for high-efficiency particulate While PCR cabinets provide product protection, they are not designed for personnel safety when working with hazardous aerosols. For applications requiring both product and operator protection, refer to AS 2252.2, which outlines the intended use of biological safety cabinets
- Hourmeter
- Manometer
- Power Outlet
- Service taps for air, gas and vacuum
- Floor Stand Fixed Height or Electronically Adjustable
- Trolley
- Fumigation Adaptors (PCR60R)
PCR Series cabinets are factory tested and certified by a NATA-Accredited laboratory. Additional testing and certification is recommended as follows:
- On site prior to use
- After maintenance
- After filter replacement
- After re-location
- At least annually
- In special circumstances, e.g. if faulty operation is suspected.
CABINET
The durable steel housing is finished with a baked enamel coating, specially developed for laboratory environments to ensure long-lasting performance. The work zone and removable UV shield are constructed from 304 stainless steel, providing a smooth, easy-to-clean surface that enhances hygiene and simplifies maintenance.
ELECTRICAL
PCR cabinets operate on single-phase 240V, 50 Hz power via a standard 10A outlet. A low-voltage touch control panel is located on the front of the cabinet, with LED indicators displaying the status of switched functions. The PCR60R™ model includes an audible alarm and warning LED to alert users of any reduction in airflow, ensuring safe operation. An integral fluorescent lamp housing minimizes heat build-up near the operator while providing a lighting intensity of over 800 lux at the work surface. The UV lamp emits 254 nm radiation, effectively inactivating residual DNA/RNA contaminants. The electrical system complies with AS/NZS 3100 for electrical safety and aligns with IEC 61010-1, the internationally recognized standard for laboratory electrical equipment. This ensures compliance with both regional and global safety standards, making the cabinets suitable for regulated laboratory environments worldwide.
HEPA FILTERS
AES HEPA filters are independently tested and certified for high-performance contamination control. Manufactured to meet AS 4260, each filter achieves a minimum efficiency of 99.995%, passing the stringent BS 3928 Sodium Flame Test, and is certified leak-free in accordance with AS 1807:2021. To further enhance reliability, positive-pressure filter seals are surrounded by negative-pressure zones, ensuring containment and preventing leakage.
FAN
The direct-drive fan is regulated by a speed controller, ensuring consistent airflow throughout the filter’s lifespan. Designed for superior airflow performance, the fan and filter plenums optimize air distribution, maintaining a stable, particle-free work zone for reliable contamination control.
PRE-FILTERS
On PCR60™ cabinets, an easily accessible, washable pre-filter located on top of the unit captures at least 90% of particles 5 microns and larger. This reduces the particulate load on the HEPA filter, extending its lifespan and minimizing maintenance requirements.
